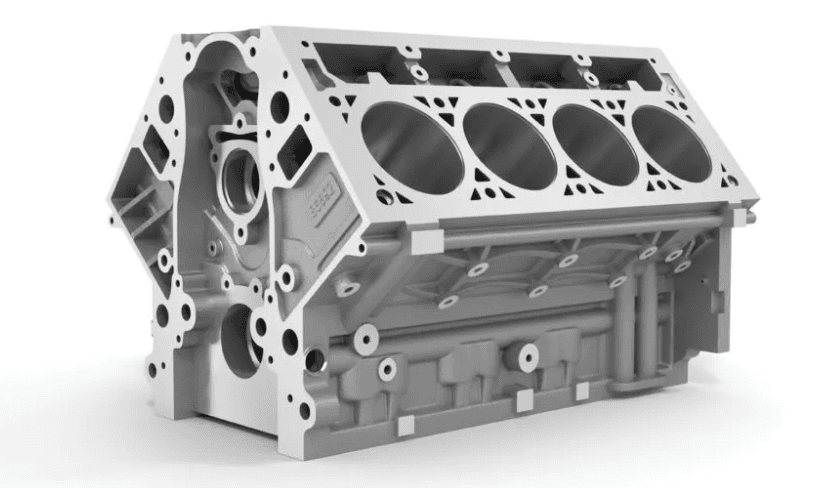

Cylinder Block (Engine Block)

The cylinder block is the fundamental component of internal combustion engines. This part provides the structural integrity of the engine and houses the cylinders along with many essential components required for engine operation. Generally manufactured from cast iron or aluminum alloys, it is designed to withstand high temperatures and pressures. The cylinder block serves as a housing that accommodates the pistons, crankshaft, valves, and various auxiliary systems. This structure plays a critical role in maintaining both the mechanical stability and the thermal and lubrication balance of the engine.

The cylinder block includes components such as cylinders, cylinder head, oil galleries, coolant passages, oil pan, and crankshaft bearings. In modern engines, the cylinder block is typically produced as a single unit integrated with the oil pan. This manufacturing approach has reduced costs and enhanced the overall durability of the engine.

The arrangement of cylinders varies depending on the engine type. The most common configurations include inline, V-type, and opposed (boxer) layouts. In inline engines, the cylinders are aligned in a straight line, whereas in V-type engines, the cylinders are arranged in two rows at an angle to each other.

^【1】

The primary functions of the cylinder block are as follows:

• Cylinder Housing: The pistons move within these cylinders, and the combustion process occurs here.
• Containment of Coolant and Oil Passages: Coolant passages within the cylinder block maintain optimal engine temperature, while oil passages reduce friction and protect components.
• Crankshaft Support: The crankshaft is mounted and supported by bearings within the cylinder block.
• Support for Auxiliary Systems: Components such as the alternator, exhaust manifold, and air compressor are mounted onto the cylinder block.

Cylinder blocks can be manufactured from different materials depending on their intended use. Cast iron is particularly preferred in diesel engines due to its high durability and resistance to wear and corrosion. In gasoline engines, aluminum alloys are more common. Aluminum is lighter than steel and has a higher thermal conductivity. However, aluminum blocks are typically reinforced with steel or cast iron liners.

Cylinder liners are classified into two types: wet and dry. Wet liners are in direct contact with the coolant and form the entire cylinder wall. In dry liners, the liner is surrounded by the block material and does not come into direct contact with the coolant. In both systems, the replaceability of the liners facilitates the engine reconditioning process.

In the early stages of internal combustion engines, cylinders were typically cast separately and then assembled. Over time, cylinder blocks were developed that cast two or three cylinders together. This monobloc design reduced manufacturing costs and improved engine reliability.

Over time, certain failures can occur in cylinder blocks. The most common include:

• Cylinder Wear and Cracks: Prolonged use can increase friction between the piston and cylinder wall, leading to wear or cracking of the cylinder surfaces.
• Coolant Leaks: Faults in the radiator, hoses, or liners can cause coolant leaks. A crack in the block itself can also lead to this issue.
• Porosity Issues: Contaminants introduced during the manufacturing process can create microscopic pores in the block, negatively affecting engine performance.
• Oil Leaks: Leaks may occur due to faulty gaskets or connections in the oil galleries, resulting in reduced oil pressure and potential engine damage.

The cylinder block is central to the performance, efficiency, and durability of an internal combustion engine. Material selection, manufacturing techniques, design features, and the components it contains directly influence the engine’s overall operation. The structural robustness and functionality of the engine block ensure its long-term reliable operation. Therefore, high precision must be maintained in both the design and maintenance processes of the cylinder block.
