Jantar Mantar Observatory

Jaipur’s Jantar Mantar Observatory is a complex of monumental astronomical instruments constructed in the early 18th century. It is the most comprehensive and best-preserved of India’s historic observatories, reflecting both the scientific expertise and cosmological understanding of its time. During the late Mughal period, it emerged as the center for astronomical and astrological practices within the court of an enlightened prince.

The historical context of Jaipur’s Jantar Mantar is linked to a scientific initiative in early 18th century India aimed at reevaluating and standardizing astronomical observation methods. The construction of the observatory coincided with a period in which astronomy, cosmology, time measurement and astrological calculations held significant scientific and social functions.

The primary catalyst for establishing the observatory was the inconsistency Jai Singh IIJai Singh II identified in existing astronomical instruments. The brass instruments commonly used at the time were small in size, contained moving parts and were prone to wear, making it impossible to achieve the required level of stability and accuracy in measurements. To resolve this issue, Jai Singh II dispatched research teams to scientific centers in Central Asia and Europe. Based on the knowledge acquired, he concluded that greater precision in astronomical observations could be achieved by increasing the size of instruments, fixing them in place and using durable materials. This led to the conception of monumental observational devices constructed from stone and marble, a design approach that defined the architectural form of the Jaipur complex.

The period of the observatory’s construction also coincided with Jaipur’s emergence as a new capital. In planning the city, Jai Singh II adopted a layout based on Vastu Shastra principles integrating nature, astronomy and cosmology, establishing a functional unity between the city and the observatory. The observatory’s location near the administrative center of the city reinforced the role of astronomical observations in governance, timekeeping and social rituals.

^{Jantar Mantar Observatory (}Flickr⁾

Construction of the complex was completed around 1724, and the Jaipur observatory is the most extensive of the five observatories Jai Singh II commissioned for the same purpose. However, shortly after completion, the observatory began to deteriorate due to lack of regular maintenance, particularly accelerated by exposure to open-air conditions. By the end of the 19th century, the structures had worn down and some instruments had lost their functionality, marking the beginning of a process that threatened the observatory’s historical integrity.

In 1901, a restoration initiative launched by Maharaja Ram Singh aimed to halt this deterioration and restore the observatory to operational condition.^【1】  These efforts included structural repairs to the instruments, renewal of calibration markings and reinforcement of architectural surfaces. Ram Singh’s interventions laid the foundation for the observatory’s present form, enabling its survival into the modern era.

^{Jantar Mantar Observatory in Jaipur (}Flickr⁾

During the early 20th century under British administration, further maintenance work was carried out.^【2】  However, due to its open-air location, surface erosion, fading of scale markings and deterioration of architectural details reemerged over time. As a result, the complex became a cultural heritage site requiring sustained, long-term conservation.

Its inclusion in UNESCO’s World Heritage Watch List in 2008 generated new awareness for its preservation and accelerated restoration efforts. These focused particularly on renewing fine calibration markings critical to its astronomical function and enhancing material durability. Following these interventions, the Jantar Mantar was inscribed on UNESCO’s World Heritage List in 2010.^【3】

The structures within the observatory combine various geometric forms including triangular walls, semicircular ramps, cylindrical voids, depressions, vertical projections and large stone bases. These forms are designed to measure the position of celestial bodies along the local meridian, their angular elevation, the direction of shadows or the points of solar illumination. The complete absence of movable parts, with all instruments constructed from fixed stone masonry, eliminates errors caused by mechanical movement. Jai Singh II’s decision to use stone and marble as primary materials was the fundamental driver behind this architectural approach.

A distinctive feature of the architecture is the monumental scale of the instruments. Their large dimensions are based on the principle that increasing scale reduces measurement error, particularly in sundials and star position calculations. As a result, instruments such as the Samrat Yantra represent the largest examples of their kind in history.

Although geometric precision was the primary design criterion, the presence of Hindu-style roof overhangs, local stone and marble usage, and the preference for arched openings to reinforce voids contributed to the complex’s aesthetic harmony with regional architectural traditions.

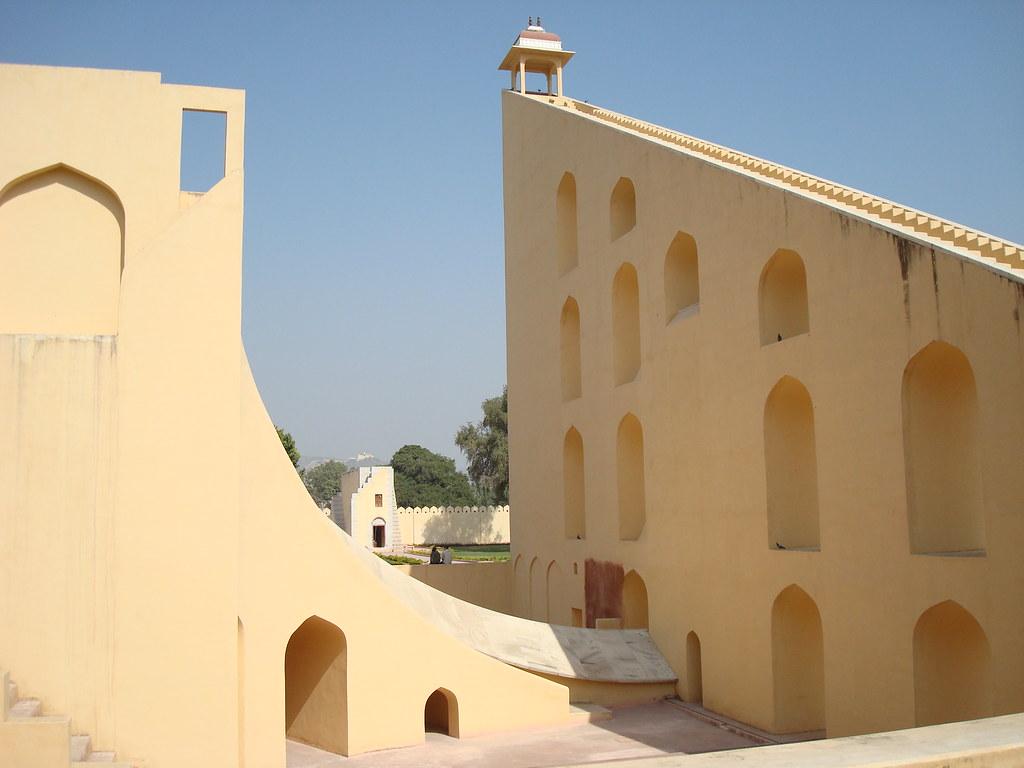

^{Architecture of Jantar Mantar Observatory in Jaipur (}Flickr⁾

The observatory functions as an open-air complex rather than a single enclosed structure, presenting a holistic arrangement of independent units designed for specific calculations. Each yantra is positioned to perform a distinct astronomical function: some are aligned north-south for meridian observations, while others are angled to track the Sun’s position along the ecliptic. The spatial relationships and alignments between instruments are also carefully arranged to minimize calculation errors.

Another significant dimension of the complex’s architecture lies in its calibration markings on instrument surfaces. Although affected over time by open-air conditions, these markings remain essential to the observatory’s primary astronomical function. Fine graduations are meticulously carved into stone surfaces, providing the necessary reference points for measuring specific shadow or light fall positions.

The Jantar Mantar in Jaipur is an open-air complex housing approximately twenty major fixed instruments designed for astronomical observation. All instruments are large-scale, fixed stone constructions developed to determine celestial positions with the naked eye. Their architecture follows a design philosophy that eliminates movable parts to maximize measurement accuracy. Each yantra is configured with a unique function to track specific positions and movements of the Sun, stars or planets. The main instruments and their functional characteristics are as follows:

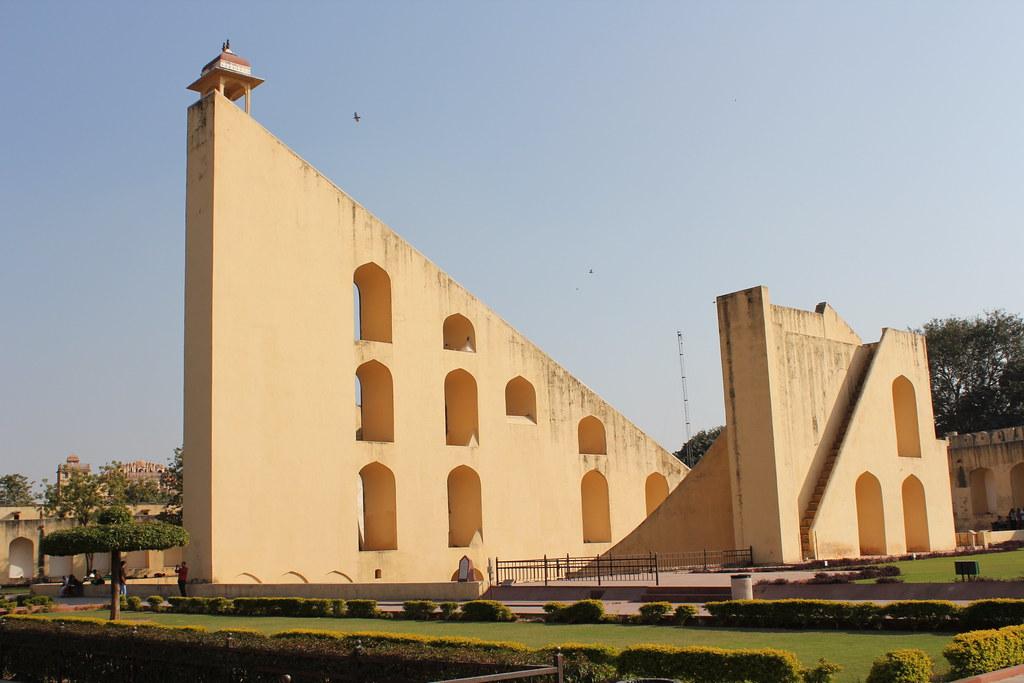

The largest instrument in the complex, this structure stands approximately 27 meters high and consists of a triangular wall flanked on both sides by large semicircular ramps, functioning as a sundial.^【4】  The Samrat Yantra measures the time of equinoxes and local time with exceptional precision, capable of indicating time with an accuracy of two seconds based on the shadow’s movement of approximately one millimeter per second.^【5】  The position of the shadow on the ramps serves as the primary reference for determining the Sun’s altitude and the hour of the day.

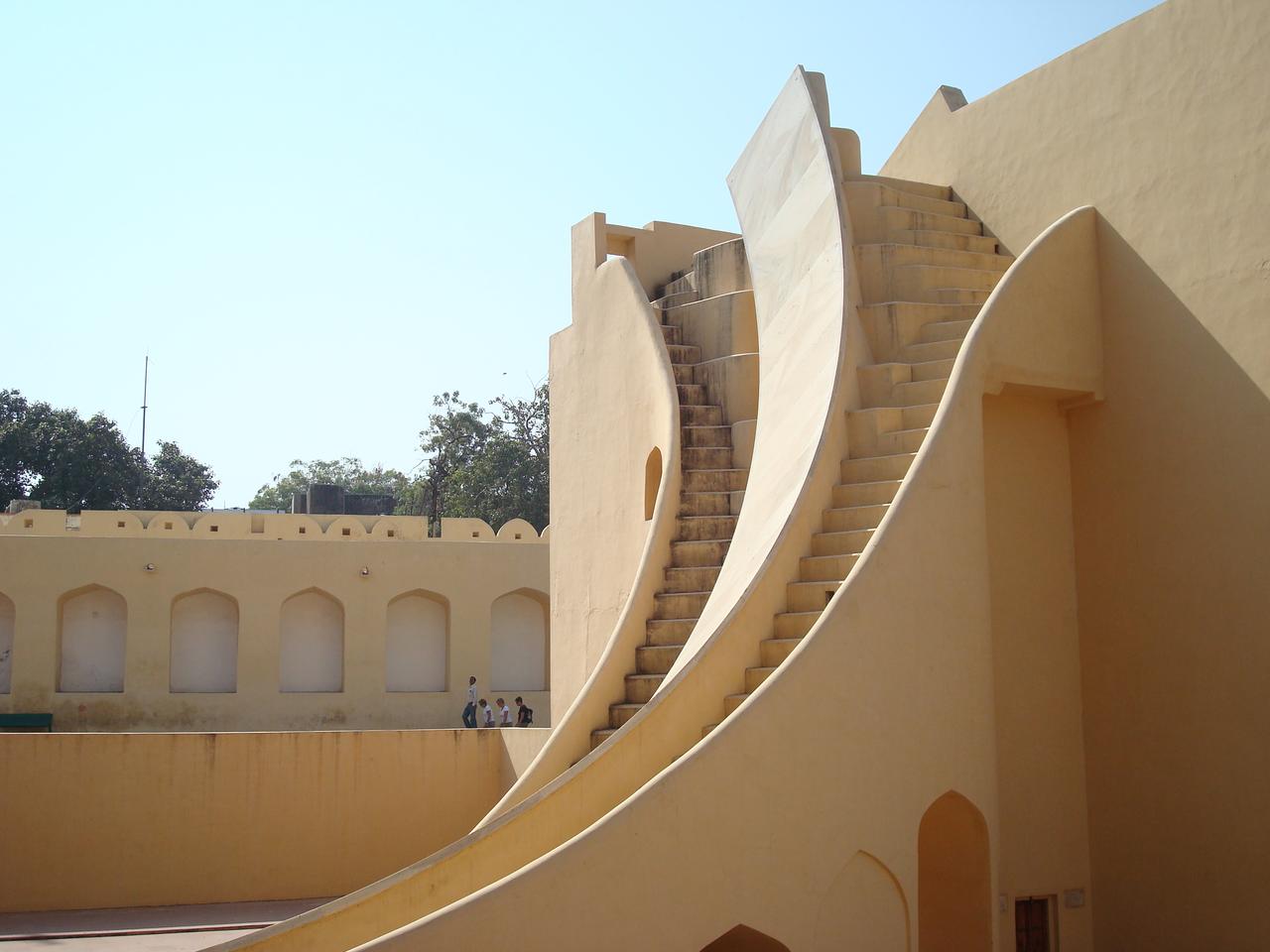

^{Samrat Yantra (}Flickr⁾

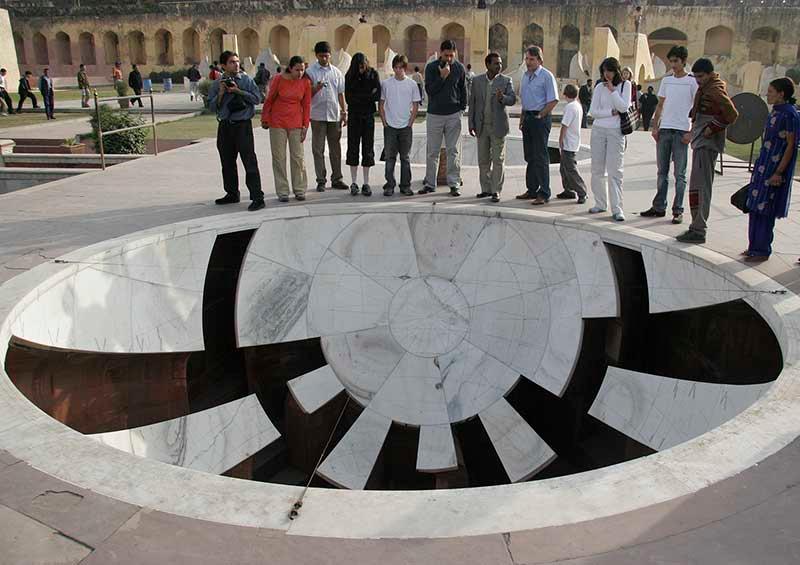

Composed of two large semicircular structures set at ground level, their marked surfaces are used to determine the positions of stars and planets. A cross-strung wire spans the top, and a small metal disc suspended from it casts a shadow of the Sun or a designated star, enabling precise positional determination.^【6】  This instrument is one of the key tools for determining Vedic zodiac signs and tracking the movement of celestial bodies along the ecliptic.

^{Jai Prakash Yantra (}Jantar Mantar⁾

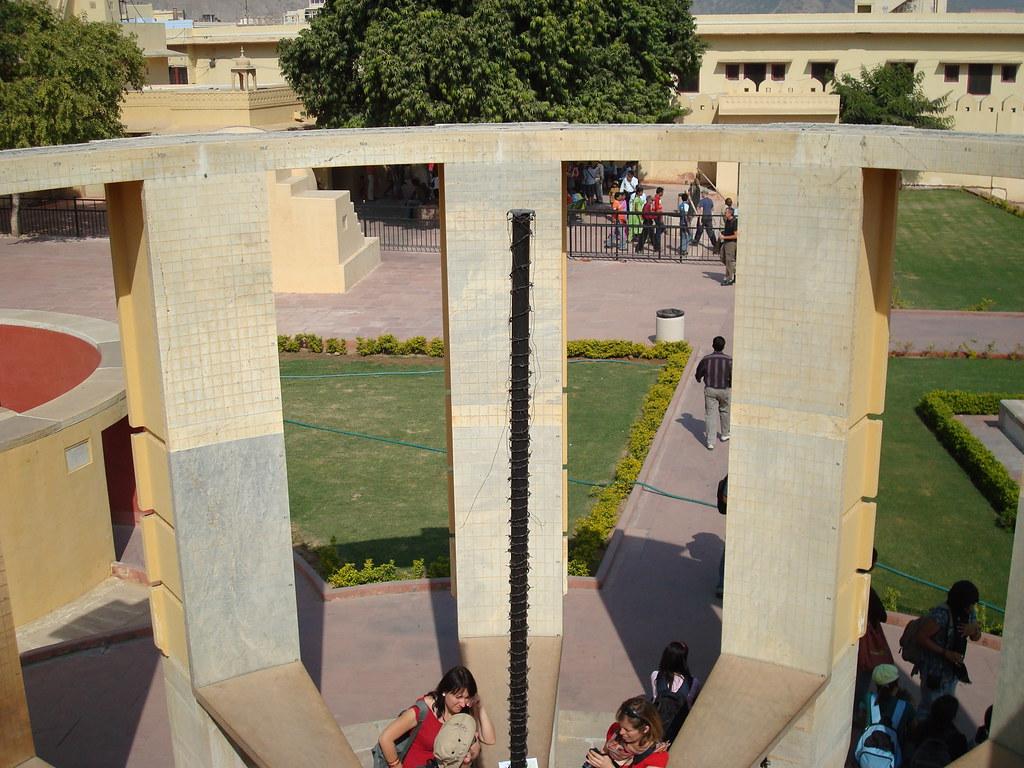

This instrument consists of cylindrical structures designed to measure altitude and azimuth angles. The Ram Yantra features a central vertical pillar within an open-topped cylinder, with degree markings inscribed on the inner surfaces of the cylindrical walls. The shadow cast by sunlight or a specific celestial body onto the pillar and wall surfaces is used for positional calculations.^【7】  This design was specifically developed to determine the altitude of celestial bodies above the horizon.

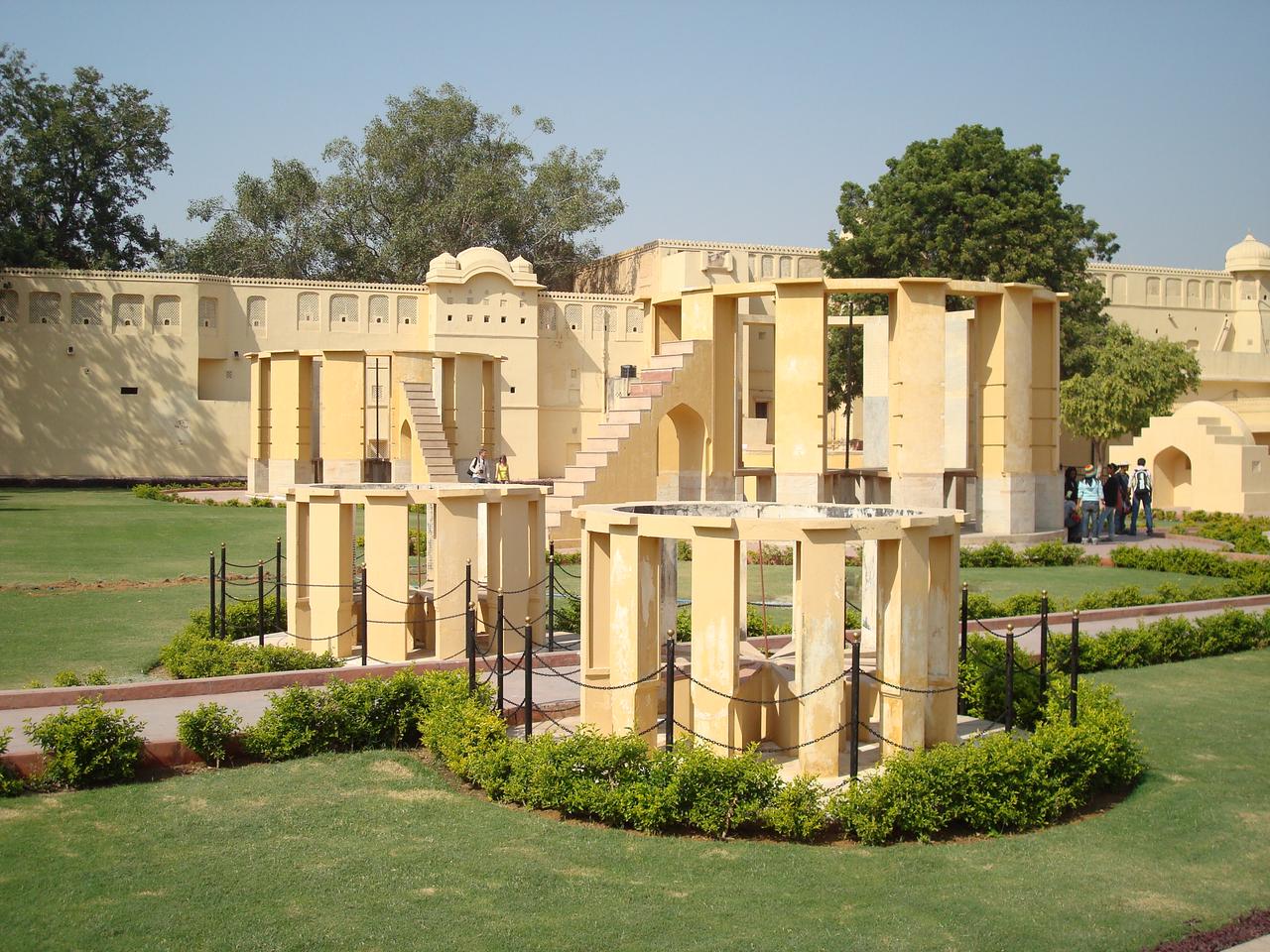

^{Ram Yantra (}Flickr⁾

A composite instrument integrating five different time-measurement methods. The purpose of the Misra Yantra is to compare local time calculations used in various geographical regions. Unlike other instruments in the observatory, it has the capacity to correlate time measurements not only from Jaipur but also from distant regions.

^{Misra Yantra (}Flickr⁾

Numerous other yantras in the complex were developed to determine the position of the Sun, the motion of stars, meridian transits, ecliptic angles and specific astrological calculations. These include:

• Constellation observation structures: Designed to record positional changes along the zodiac belt.
• Meridian measurement instruments: Designed to determine the exact moment the Sun crosses the local meridian.
• Specialized designs such as Nadivalaya Yantra: Arranged to determine the Sun’s position in both hemispheres.
• Agricultural forecasting structures: Traditional measurement forms used for predicting crop yields and seasonal events.

Some of these yantras historically served astrological applications, while others fulfilled meteorological forecasting functions. One of Jai Singh II’s objectives in designing the instruments was to improve the accuracy of the city’s agricultural calendar, ritual calendar and administrative scheduling. Consequently, many instruments in the observatory served not only astronomical but also social and administrative functions.

The Jantar Mantar in Jaipur represents the most advanced achievement of pre-modern astronomy, functioning as a monumental observational complex. Its value extends beyond the size and technical innovation of individual instruments; the integrated system formed by their collective arrangement provided a highly accurate practical application of 18th-century astronomical theory and practice.

The Jantar Mantar constitutes one of the last monumental expressions of a continuous scientific tradition rooted in Ptolemaic positional astronomy. The observations made here were applied to validate calendar calculations, determine zodiac positions, compare timekeeping techniquestime determination techniques and evaluate meteorological indicators.

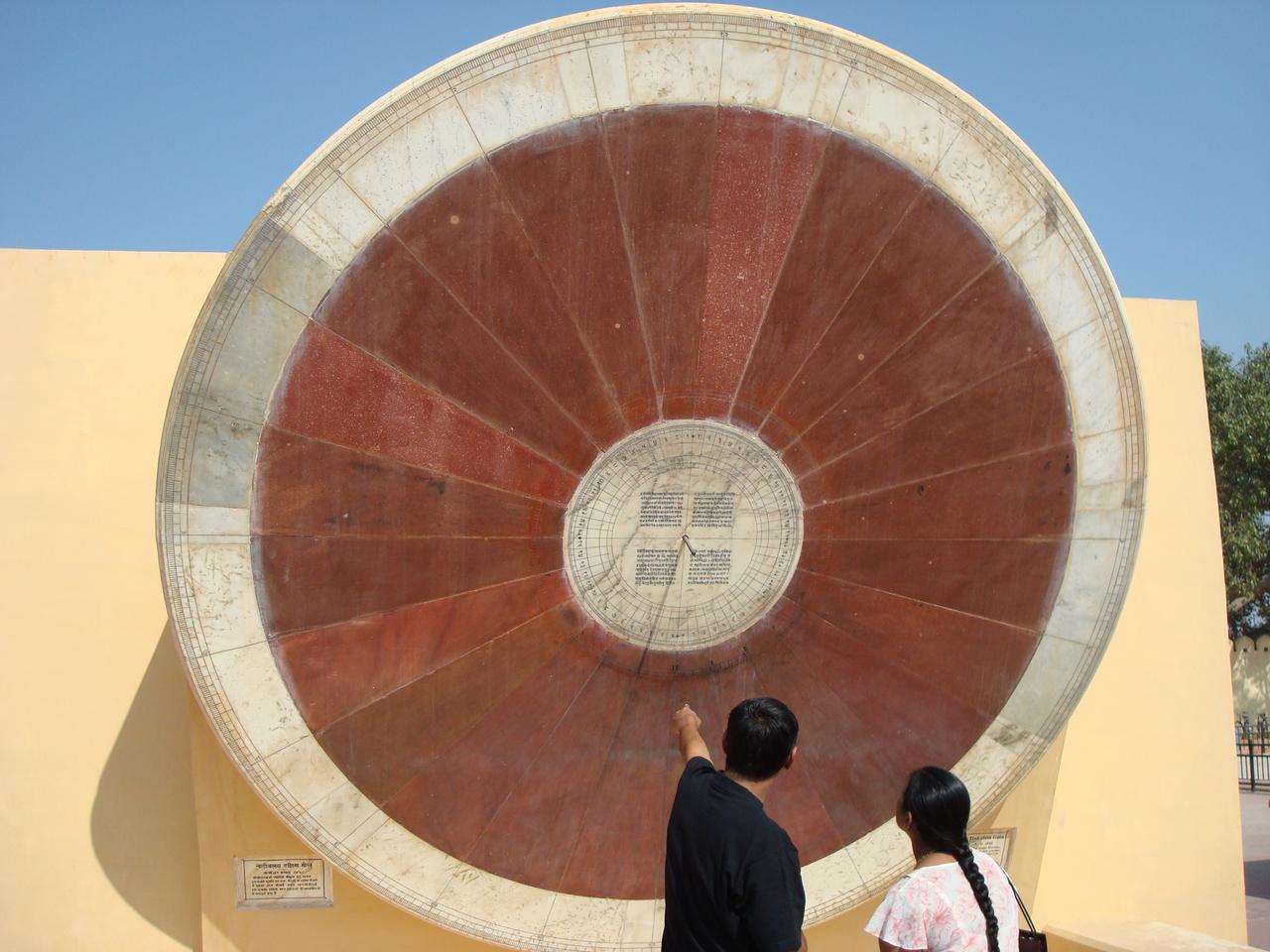

^{Jantar Mantar, Narivalaya Dakshin Gola (}Flickr⁾

Another factor enhancing the observatory’s scientific importance is the synthesis of astronomical knowledge from diverse cultures. Feedback from Jai Singh II’s delegations to Central Asian and European scientific centers resulted in a design that integrated the astronomical heritage of the Islamic world with emerging European observational techniques.

The observatory also assumed a social function through its integration of astrology, time measurement and cosmological practices. Measurements used to determine time, identify auspicious dates, calculate zodiac signs and predict weather events demonstrate that the observatory was not merely a scientific center but also a tool shaping the rhythm of social life.

The astronomical significance of the observatory has been reaffirmed in the modern era. In the 20th and 21st centuries, various scholars have emphasized that the structures still provide valid measurement systems, encouraging their use as educational tools for students to gain hands-on experience in positional astronomy.

The Jantar Mantar in Jaipur was inscribed on UNESCO’s World Heritage List in 2010, recognizing it as a cultural heritage site of Outstanding Universal Value. Its inclusion formally acknowledges its significance in architectural, scientific and cultural terms. UNESCO’s evaluation considers the Jantar Mantar not merely as a collection of large astronomical instruments but as a synthesis of diverse scientific traditions and one of the last monumental expressions of historical astronomical understanding. The World Heritage status obliges the implementation of conservation and management plans. UNESCO emphasizes the need for a long-term management system due to threats from urban development around the site, tourism pressure and potential risks to the buffer zone. The new master plan prepared by the Jaipur Municipal Corporation must include provisions to protect the observatory’s buffer zone. Strengthening the scientific expertise of management authorities is also considered essential for the sustainability of conservation policies.

The observatory began to deteriorate due to its open-air location in a tropical climate and its temporary abandonment during the 19th century. In 1901, Maharaja Ram Singh initiated restoration and reconstruction efforts, and the observatory’s current form largely derives from these interventions. Its inclusion in the World Heritage Watch List in 2008 and subsequent advocacy campaigns encouraged the Rajasthan government to undertake new restoration work. Although conservation efforts have been completed, the originality of the instruments’ plaster coatings, scale markings and architectural interpretations remains difficult to determine due to multiple interventions.

The Jantar Mantar in Jaipur is used as a public park and open-air museum. The complex continues to serve as a learning center for students, scientists and tourists from around the world seeking practical experience in astronomy and astrology.
