Duga-1 Radar Station

Duga-1 was part of a long-range radar network project designed to detect intercontinental ballistic missiles launched by the Soviet Union by identifying the ionospheric trails left by exhaust plumes immediately after launch. Over-the-horizon radar technology relies on the principle of reflecting radio waves off the ionosphere to extend range far beyond the line-of-sight limitations of conventional radar. By following a double-hop path—ground-ionosphere-target-ionosphere-ground—the system could detect launches thousands of kilometers away from the radar facility.

^{Duga Operating Principle, (Generated by Artificial Intelligence)}

Radio amateurs and broadcasters named the system the “Russian Woodpecker” due to its repetitive tapping sound at 10 Hz, which originated from the massive Duga-1 installation near Chernobyl in Ukraine.

The Soviet authorities’ prolonged refusal to acknowledge the system’s existence only intensified speculation surrounding it. However, behind this enormous structure lay the Duga program, one of the Soviet Union’s most ambitious and costly military projects.

The project was conducted under the scientific leadership of the Institute of Long-Range Radio Research (NIIDAR) and led by chief designer F.A. Kuzmin. In 1969–1970, decrees issued by the Central Committee of the Communist Party and the Council of Ministers officially approved the construction of two over-the-horizon radar complexes capable of detecting intercontinental ballistic missiles from the moment of launch.

• Western Complex (Duga-1): Positioned in northern Ukraine to monitor missile threats from the United States and NATO territories. The system’s most well-known component was the receiver antenna, which according to sources stood 135 to 150 meters high and stretched 300 to 500 meters long. This antenna was housed in the secret military settlement of Chernobyl-2, specially constructed to support operational needs and accommodate approximately 1,000 personnel and their families. The system’s powerful transmitter antennas were built approximately 60 kilometers away at the Lubech-1 site to prevent signal interference with the receiver.

• Eastern Complex (Duga-2): Located near Komsomolsk-on-Amur in the Russian Far East to monitor threats from the Pacific theater, particularly from China and the western coast of the United States. This facility shared similar technical and architectural features with the Western Complex.

The Duga program, costing approximately half a billion Soviet rubles, represented a major achievement in Soviet engineering and military strategy due to its scale and technical complexity.

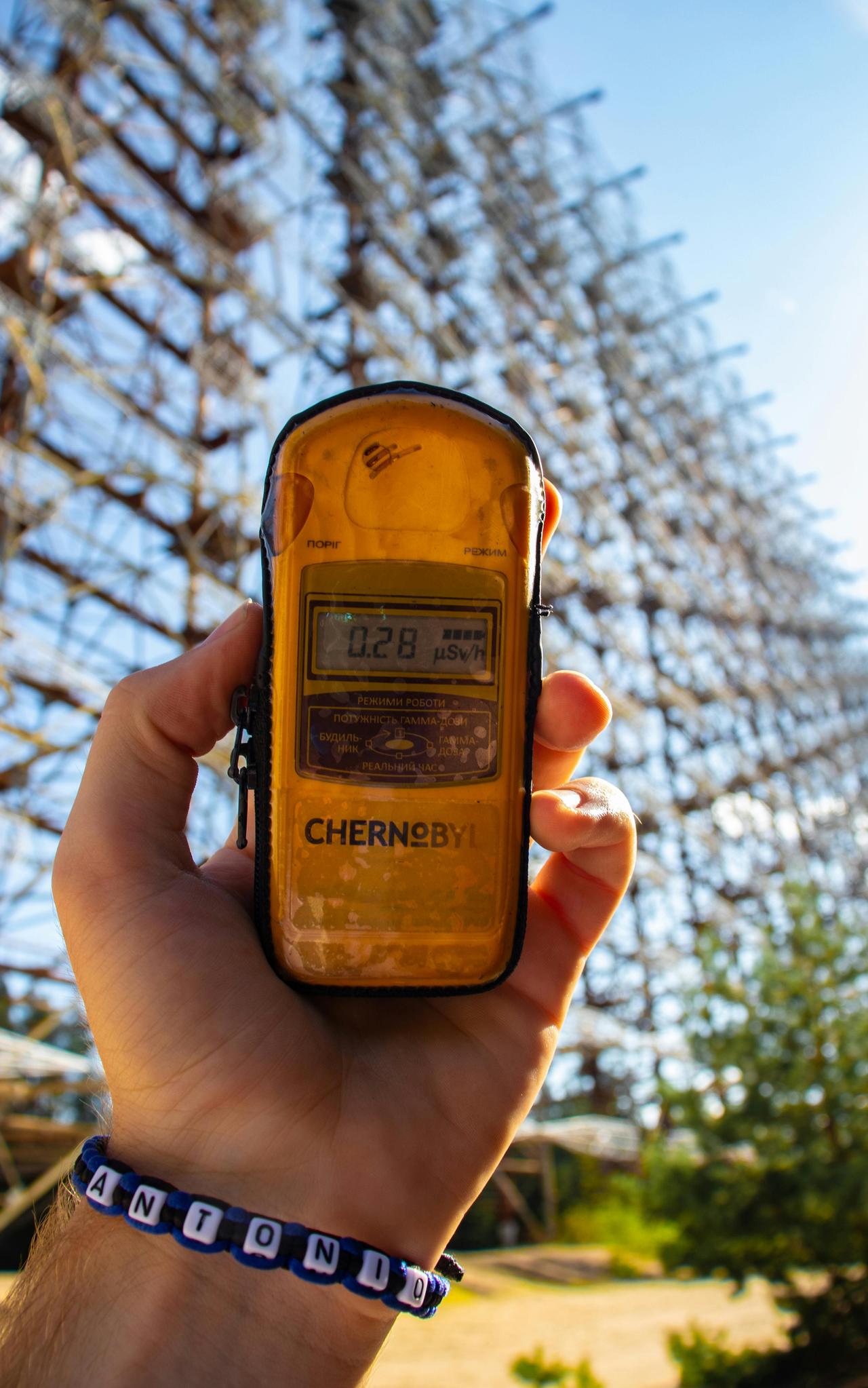

^{Chernobyl, Duga - (}Pexels⁾

1969–1970: Official approval by the Council of Ministers and commencement of construction.

1976: Successful completion of state trials and formal acceptance into service by the Soviet Air Defense Forces.

1985: Comprehensive modernization of the Duga-1 (Chernobyl-2) complex to enhance performance.

26 April 1986: The Chernobyl Nuclear Disaster rendered the Duga-1 facility permanently inoperable due to radioactive contamination.

1989: With the end of the Cold War, the project lost its strategic relevance, and Duga-2 was decommissioned.

The operational effectiveness of the Duga system required extremely high transmission power. An estimated effective radiated power of up to 10 MW was necessary to ensure detectable echoes from targets even after the signal had weakened through ionospheric propagation. The system’s characteristic 10 Hz pulse repetition rate was part of its signal processing algorithms, designed to distinguish Doppler shifts from moving targets and filter out background noise.

However, these technical requirements caused severe global electromagnetic interference ^【1】 . The system’s wide bandwidth occupied numerous frequencies, disrupting communications from civil aviation to amateur radio bands. This led to formal complaints before the International Telecommunication Union (ITU)^【2】 . The Soviet Union’s prolonged denial of the system’s existence and military purpose turned the “Russian Woodpecker” phenomenon into one of the most famous electromagnetic mysteries of the Cold War.

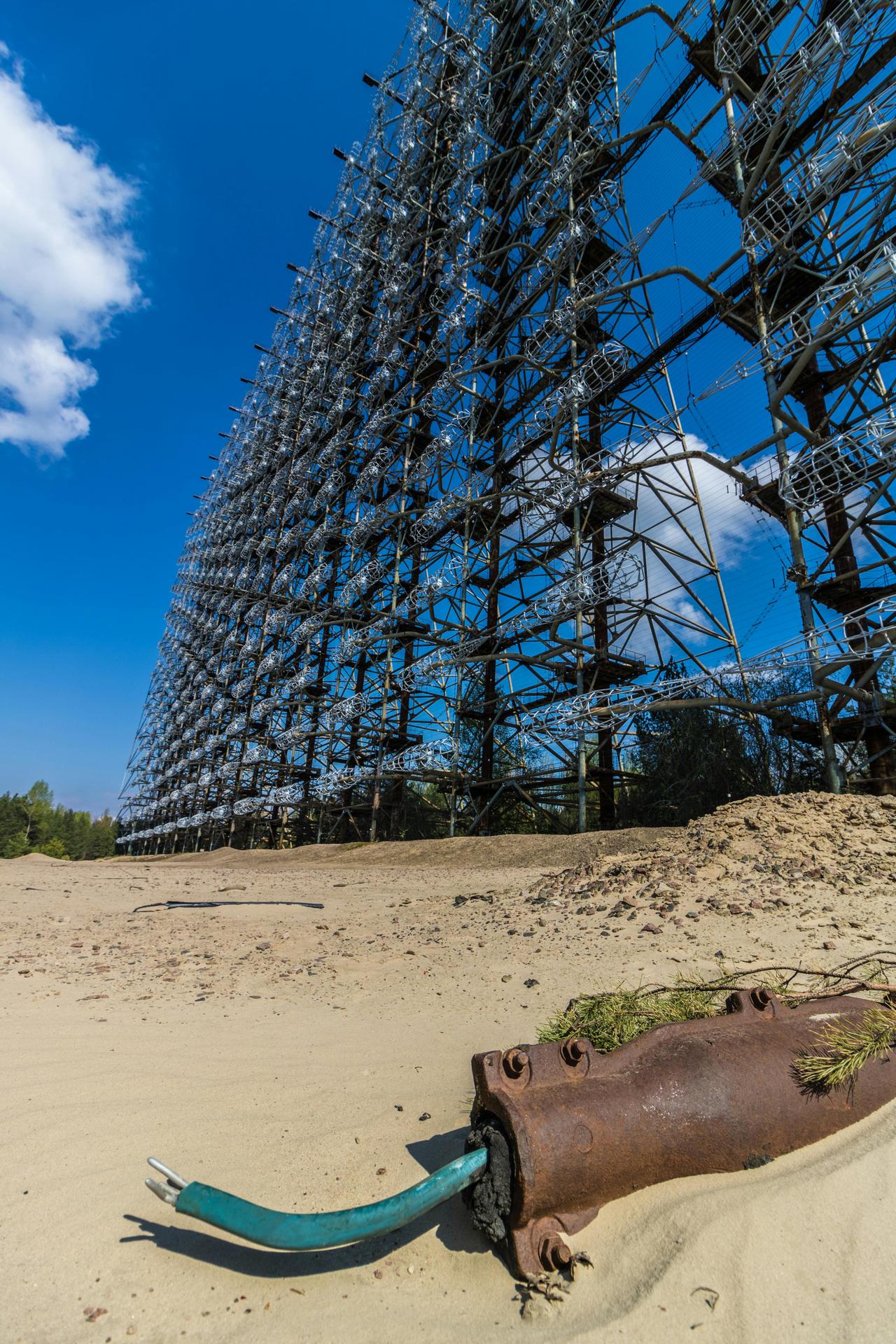

^{Duga Radar - 2, (}Pexels⁾

The Duga-1 complex stationed at Chernobyl-2 underwent a major modernization in 1985, just one year before the nuclear disaster, followed by renewed state acceptance trials.

This modernization effort provides the clearest evidence that Soviet military leadership did not regard the system as obsolete or a failed project. On the contrary, the extensive allocation of resources for such a comprehensive upgrade demonstrates that Duga-1 retained its strategic value until the disaster and continued to receive investment to fulfill its intended defense role.

The Duga-1 system successfully completed state trials and was formally accepted into combat service in 1976 by the Soviet Air Defense Forces (Voyska PVO)^【3】 . During testing, the system demonstrated its ability to detect both intercontinental and intercontinental ballistic missile launches.

However, its practical operational effectiveness was critically dependent on the inherently unstable instantaneous state of the ionosphere^【4】 . Geomagnetic storms and ionospheric disturbances in polar regions could cause significant performance degradation or temporary blind spots. This fundamental vulnerability rendered the system insufficiently reliable for a strategic early warning network.

The primary factor leading to the program’s obsolescence was a technological advancement: the Soviet Union’s concurrent development of the space-based early warning system known as “Oko” (US-KS) satellite system^【5】 , which offered a far more stable and reliable detection platform unaffected by atmospheric conditions. As strategic priorities shifted toward satellite systems, Duga’s importance gradually diminished. The final blow to Duga-1 came on 26 April 1986 with the Chernobyl nuclear disaster. The resulting severe radioactive contamination of the region made continued operation impossible, permanently sealing the facility. With the end of the Cold War, the Eastern Complex also lost all strategic relevance and was decommissioned and dismantled shortly thereafter.
