Inductor (Coil)

Inductors, also known as coils, are fundamental passive components in electrical and electronic systems that play a vital role in various applications through functions such as magnetic field generation and energy storage.

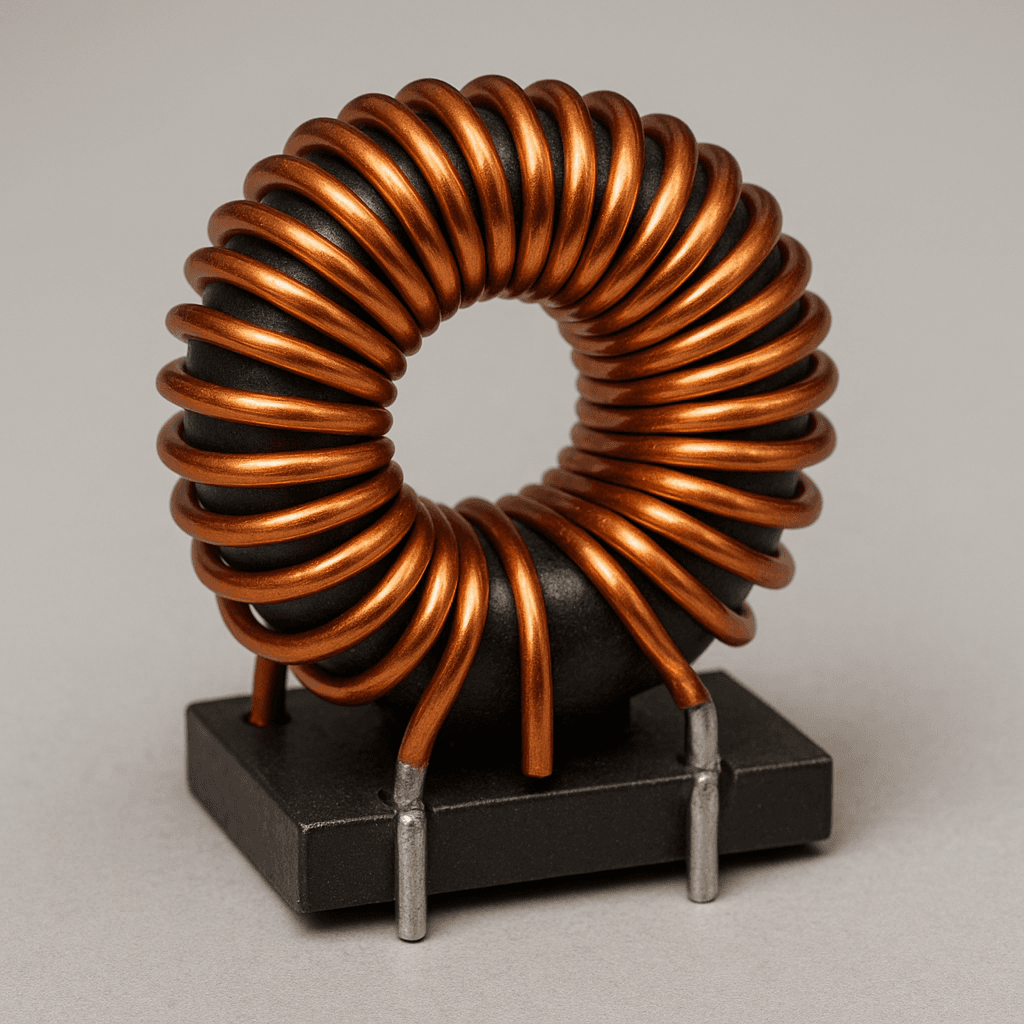

^{Bobin (İndüktör) ( Yapay zeka ile oluşturulmuştur.)}

An inductor or coil is a passive electronic component used in electrical circuits to generate a magnetic field. It is typically constructed by winding an insulated conductive wire in a specific pattern. When an electric current flows through the coil, a magnetic field is produced around it, and this field generates an electromagnetic resistance against changes in the current within the circuit.

A coil essentially consists of a conductive wire, a core material, and a supporting structure. The conductive wire is usually made from low-resistance materials such as copper or aluminum. The core may be manufactured using ferrite, iron, or composite materials to increase magnetic permeability. The presence and type of core directly affect the coil’s inductance value and operating frequency. When no core is used, air-core coils are obtained, and these are preferred in high-frequency applications.

Inductors operate based on Faraday’s law of electromagnetic induction. When the electric current flowing through an inductor changes, the resulting magnetic field also changes, inducing a voltage within the coil itself. This induced voltage creates a counter electromotive force (EMF) opposing the change in current. Thus, inductors serve to limit sudden current variations and store energy within circuits.

Induction heating coils are specialized types of coils designed to convert electrical energy into thermal energy within a target material. These coils use high-frequency alternating current to generate eddy currents in the material, which produce heat. Parameters such as the number of layers, winding shape, and geometric configuration in the design of induction coils directly influence heat distribution and efficiency.

Multilayer coils are preferred to optimize heat distribution and inductance values. Layered designs enhance thermal performance by equalizing heat density and preventing excessive localized heating.

The core material is one of the most important factors determining the inductive properties of a coil. High-permeability cores increase inductance, while low-permeability or air-gapped structures affect energy storage capacity and frequency response. The size of the core and air gap significantly influence performance, particularly in medium-frequency high-power applications.

The shape of the coil winding has a decisive impact on thermal performance. Circular, helical, and spiral configurations produce different temperature distributions. Spiral-shaped coils have been shown to distribute heat more uniformly.

Planar coils are compact designs capable of providing high inductance for small-scale applications. These coils are typically fabricated by printing onto multilayer printed circuit boards (PCBs). Planar design offers significant advantages in modern electronic circuits where space is limited.

In recent years, high-energy-density coils have been designed using materials such as copper foil, with optimization studies conducted using genetic algorithms. These techniques enhance the energy efficiency of coils and improve the volume-to-cost ratio.

The reliability of induction coils is closely related to their resistance to manufacturing defects and mechanical fatigue. Optimizing material selection and winding techniques during production directly affects the coil’s lifespan and performance.

Coils are fundamental electronic components used in a wide range of functions including energy storage, signal filtering, induction heating, and magnetic field generation. The materials, geometry, and manufacturing techniques used in their design are carefully selected according to the application. Scientific research continues to develop new methods to improve the efficiency and reliability of coils.
