Sphere, officially named Sphere at the Venetian Resort, Las Vegas, Nevada, is a music and entertainment venue featuring spherical architecture and immersive technologies.

Developed and operated by Madison Square Garden Entertainment (MSG Entertainment, later restructured as Sphere Entertainment), the structure features a programmable LED screen covering its exterior surface of approximately 54,000 square meters (580,000 sq ft), known as the Exosphere, as well as a 16K resolution spiral screen, an advanced sound system, and 4D sensory effects.

^Sphere, Pexels

The Sphere project was developed in line with the vision of Madison Square Garden Entertainment (MSG Entertainment) and its Chairman and CEO su James L. Dolan to transform live entertainment experiences through technology. The goal was to create a venue capable of delivering unique, fully immersive experiences both visually and auditorily.

Construction began with a groundbreaking ceremony on September 27, 2018. In June 2019, a contract was signed with AECOM as the general contractor. The project’s cost increased during construction. The initial pre-approved budget by MSG’s board was $1.2 billion (May 2019), but AECOM’s first assessment in July 2019 estimated the cost at approximately $1.7 billion. MSG initially considered this figure too high. Due to various factors—including design changes, global supply chain disruptions, and inflation—the final completion cost was reported to reach $2.3 billion.

Sphere at the Venetian Resort opened with the inaugural concert of Irish rock band U2’s residency program titled "Achtung Baby Live at Sphere" on September 29, 2023.

Sphere at the Venetian Resort is a prominent spherical structure standing 112 meters (366 ft) high and measuring 157 meters (516 ft) in diameter at its widest point.

The building’s exterior surface consists of a fully programmable LED screen known as the Exosphere, covering approximately 54,000 square meters (580,000 sq ft). At its opening, it was described as the world’s largest LED sphere. This external screen is composed of approximately 1.2 million disc-shaped LED units (called “pucks”), each containing 48 individual LED diodes spaced 20 cm (8 in) apart. The manufacturer states that each diode can display 256 million distinct color tones. The Exosphere’s LED technology and integration were provided by SACO Technologies. This dynamic façade is used to display a wide variety of visuals, including artistic content, atmospheric imagery, advertisements, and promotional material for special events.

Sphere’s interior space is also designed with technology-driven, immersive experience in mind. Depending on the event type, the venue has a seating capacity of approximately 17,600 and a total guest capacity of approximately 20,000 when including standing areas.

The physical basis for this precise sound control involves algorithms that utilize advanced acoustic principles such as the Kirchhoff-Helmholtz integral, which models the propagation and diffraction of sound waves. This approach aims to minimize acoustic issues such as sound scattering and reverberation caused by the spherical geometry, ensuring targeted sound clarity and consistency across all listening positions.

The system employs HOLOPLOT’s next-generation 3D Audio Beamforming and Wave Field Synthesis technologies. These technologies rely on fundamental acoustic equations such as the Helmholtz Equation to calculate how sound behaves in three-dimensional space, particularly within the spherical geometry. Approximately 167,000–168,000 speaker drivers mounted behind the LED screen use these calculations to generate realistic 360 degree immersive sound fields and deliver consistent auditory experiences to every listener.

The high-resolution (16K) imagery displayed on Sphere’s interior screen also depends on advanced camera and optical systems. The lenses in these systems rely on fundamental optical principles such as Snell’s Law, which mathematically models how light refracts when passing between media of different densities. Correct application of this law in optical design is essential to achieve sharp, high-resolution images on Sphere’s massive screen.

The effective planning of Sphere’s vast interior volume was critical to accommodate its approximately 17,600-seat [Linsnled, Doitvision] audience capacity as well as to provide space for large-scale technological components such as the 15,000-square-meter spiral LED screen and stage area [Dezeen, Doitvision]. For example, the entire Statue of Liberty could fit inside Sphere. This interior layout and capacity planning is based on fundamental geometric principles such as spherical volume calculations (V = 4/3πr³).

Sphere at the Venetian Resort is a multi-purpose performance venue primarily designed for concerts, special events, and unique cinematic presentations. Its technological capabilities enable it to host a variety of event types.

Concert Residencies (Fixed Programs): Since its opening, Sphere has hosted long-term concert residencies by some of the world’s leading musical acts:

• U2: The Irish rock band U2 launched the venue’s opening with the program "U2:UV Achtung Baby Live at Sphere" on September 29, 2023. This residency ran until March 2, 2024, comprising a total of 40 concerts.
• Phish: The American rock band Phish became the second act to perform at Sphere after U2. The group held a special four-concert residency from April 18 to 21, 2024, featuring different setlists each night and real-time, venue-specific visual content.
• Dead & Company: Dead & Company, formed by members of the Grateful Dead, has staged multiple residencies at Sphere. After their 30-concert “Dead Forever – Live At Sphere” program in 2024 (May–July), the band announced a new 18-concert residency in March–May 2025 to celebrate their 10th anniversary. It was reported that their 2024 program reached approximately half a million attendees.

In addition to concerts, a specially designed show titled "The Sphere Experience" showcases the venue’s technological capabilities. The centerpiece of this experience is the film "Postcard from Earth", directed by Darren Aronofsky and produced exclusively for Sphere. The film, which premiered shortly after the venue’s opening (in October 2023), runs for approximately 50 minutes.

Before the show, visitors participate in an interactive experience in the atrium featuring “Aura,” humanoid robots, a Hypervsn screen displaying hologram-like images 50 feet tall, and a demonstration of the Sphere Immersive Sound (HOLOPLOT) audio system. During the film screening, a multisensory experience is achieved through haptic vibrations in the seats, wind, temperature changes, and scent effects, alongside the visual power of the interior screen.

The massive LED screen on the exterior, the Exosphere, also functions as an independent content platform. It displays artistic visuals, thematic designs for special occasions (e.g., Halloween pumpkins, Christmas snow globes, Rockettes dance routines), and commercial advertisements.

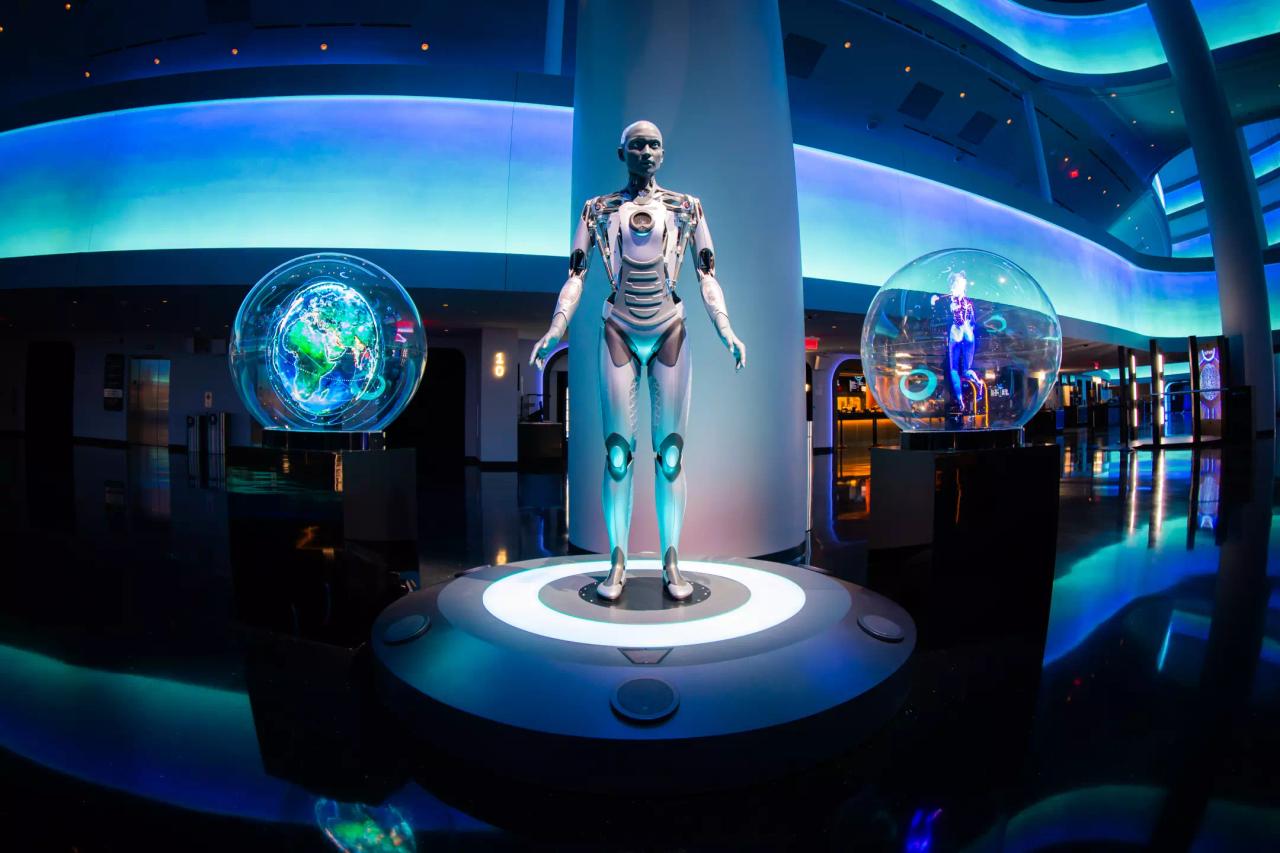

^{Aura, a robot, greets guests. (}Rich Fury / Sphere Entertainment⁾

Sphere Entertainment Co. and the Abu Dhabi Department of Culture and Tourism (DCT Abu Dhabi) have announced plans to construct a second Sphere venue in Abu Dhabi, the capital of the Arab Emirates. The Abu Dhabi government will provide financial support for this project. Company officials have stated that design and pre-construction planning for the Abu Dhabi venue are underway. Sphere Entertainment Co. CEO Jim Dolan also indicated that the company intends to develop smaller-scale Sphere venues in the future to adapt to additional markets.
