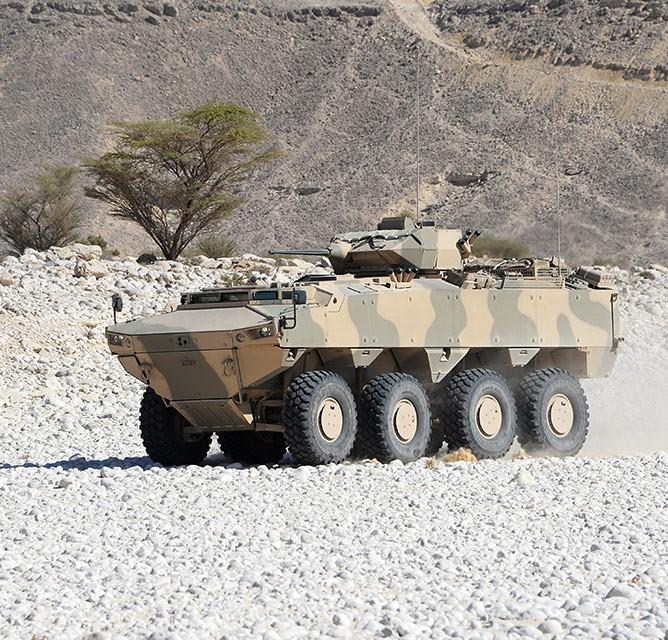

PARS III 8x8 Tactical Wheeled Armored Vehicle (TWAV)

The PARS III 8x8 is a tactical wheeled armored combat vehicle designed for use in both low- and high-intensity combat environments on modern battlefields, distinguished by its superior mobility and survivability. Developed by FNSS, the vehicle incorporates some of the most advanced armored vehicle technologies of today and provides its users with multi-mission operational capability. The PARS III 8x8 can be transported by land, air (A400M, C-17, and C-5 aircraft), sea, and rail.

Combat Weight: 30,000 kg

Crew Capacity: 9+3 personnel

Dimensions:

• Length: < 8 m
• Width: < 3 m
• Height (Hull): < 2.4 m

The PARS III 8x8 is equipped with a diesel engine and a fully automatic 7-forward 1-reverse transmission. The vehicle can achieve a maximum speed of 100 km/h and is capable of traversing terrain with up to 60% gradient and 30% side slope. It can overcome vertical obstacles up to 70 cm high and cross trenches up to 2 m wide, with an optional amphibious capability. The vehicle has a turning radius of <8 m, with all axles being drivable and lockable when required. The suspension system is a dual-wishbone, height-adjustable, independent, and hydro-pneumatic design.

Maximum Road Range: > 800 km

Approach Angle: 50°

Departure Angle: 40°

The PARS III 8x8 is designed to meet STANAG 4569 ballistic and mine protection standards (protection levels classified). Standard equipment includes eight smoke grenade launchers, an automatic fire suppression system, CBRN protection, and climate control systems. Fuel tanks are specially protected against explosion and penetration, and an additional fuel tank is located beneath the armor. Solid disk inserts within the wheels enable the vehicle to continue mobility even with punctured tires.

The driver’s cabin provides a wide field of view with 180° horizontal visibility and large panoramic periscopes. Standard equipment includes day/night vision cameras, a battle management system, a navigation system, and VHF/UHF radio systems. An electrical system compliant with MIL STD 1275 and MIL STD 461 standards, along with an optional auxiliary power unit (APU), is provided for mission equipment.

The subsystems of the PARS III 8x8 are modular and mounted on a mine-protected hull. This design enables rapid and easy field replacement of running gear and powertrain components. The powertrain can be removed and reinstalled in less than 60 minutes, enhancing the vehicle’s operational continuity and mission effectiveness.

The vehicle supports integration of various types of manned or remotely controlled weapon stations and/or missile systems from different origins. Standard 360° situational awareness systems and driver vision systems provide the crew with a high level of environmental awareness and control.

The PARS III 8x8 can be configured according to user requirements through various mission-specific configurations. These configurations include:

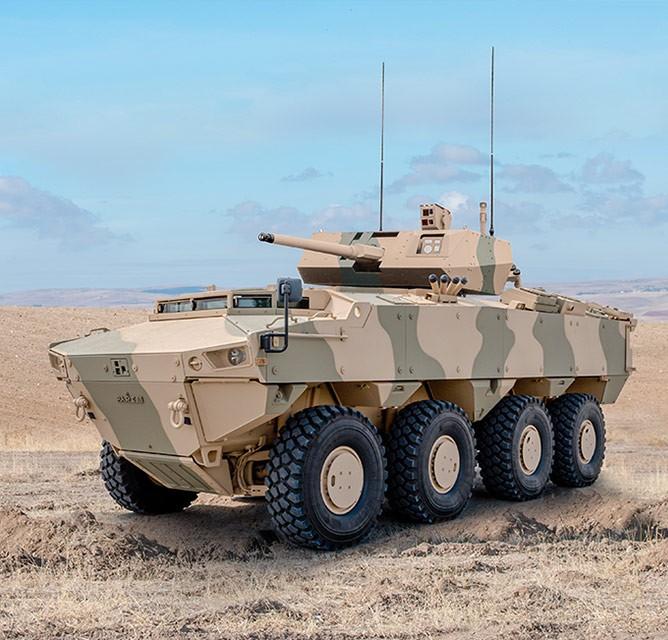

TTZMA is the Tactical Wheeled Armored Combat Vehicle variant of the PARS III 8x8 family. It is equipped with a SABER 25 turret featuring a 25 mm automatic cannon with stabilization, available in manned or remotely controlled configurations, and has a crew capacity of 11 or 12 personnel including commander, gunner, and driver.

^{PARS III 8x8 Tactical Wheeled Armored Combat Vehicle - (}FNSS Defense Systems Official Website⁾

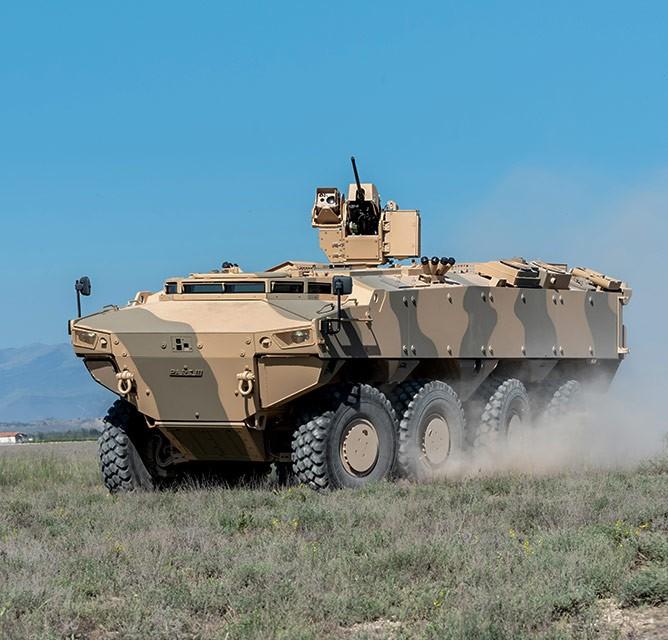

TTZPT is the Tactical Wheeled Armored Personnel Carrier variant of the PARS III 8x8 family. It is fitted with a single SANCAK 12.7 mm remotely controlled weapon station and has a crew capacity of 12 personnel including commander, gunner, and driver.

^{PARS III 8x8 Tactical Wheeled Armored Personnel Carrier - (}FNSS Defense Systems Official Website⁾

TTZKA is the Tactical Wheeled Armored Reconnaissance Vehicle variant of the PARS III 8x8 family, featuring a two-man turret. It is equipped with a TEBER turret featuring a 30 or 35 mm automatic cannon with stabilization, available in manned or remotely controlled configurations, and has a crew capacity of 7 personnel (manned turret) or 11 personnel (remotely controlled turret), including commander, gunner, driver, and reconnaissance team.

^{PARS III 8x8 Tactical Wheeled Armored Reconnaissance Vehicle - (}FNSS Defense Systems Official Website⁾

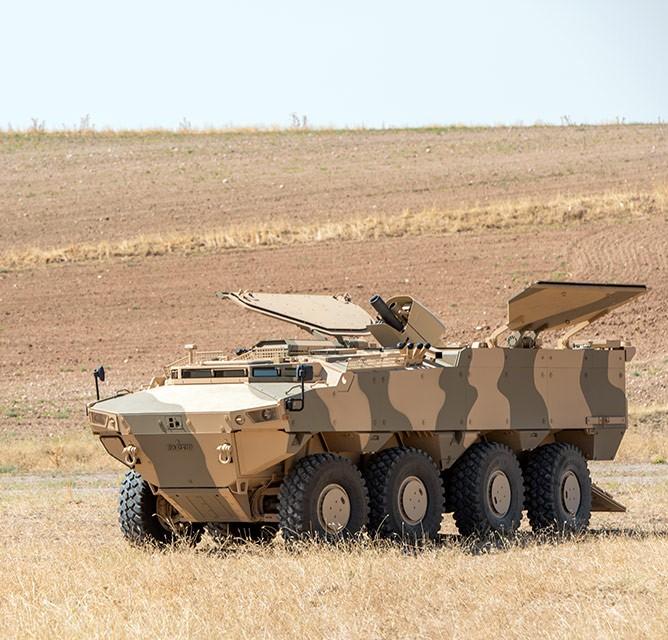

TTZHA is the Tactical Wheeled Armored Howitzer Vehicle variant of the PARS III 8x8 family. It integrates 81 mm or 120 mm howitzer systems mounted on a rotating platform, allowing firing after opening large hatches on the hull. The vehicle is also equipped with a SANCAK remotely controlled weapon station or a roof-mounted machine gun for defense, and has a crew capacity of 4 personnel including commander, driver, and two howitzer operators.

^{PARS III 8x8 Tactical Wheeled Armored Howitzer Vehicle - (}FNSS Defense Systems Official Website⁾

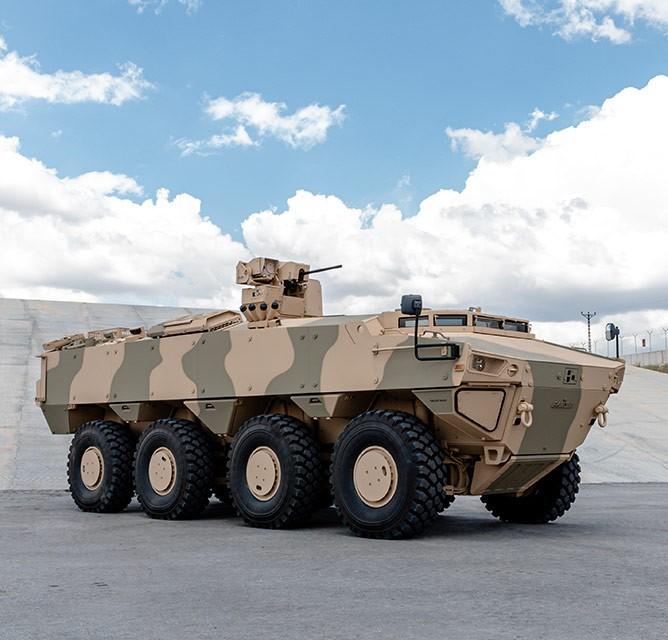

This variant of the PARS III 8x8 family is configured as an Armored Command Post Vehicle, equipped to carry command personnel at battalion or brigade level along with integrated mission equipment, and can also function as a fire direction center when required. It is fitted with a single SANCAK 12.7 mm remotely controlled weapon station and has a crew capacity of 8 personnel including commander/gunner and driver.

^{PARS III 8x8 Armored Command Post Vehicle - (}FNSS Defense Systems Official Website⁾

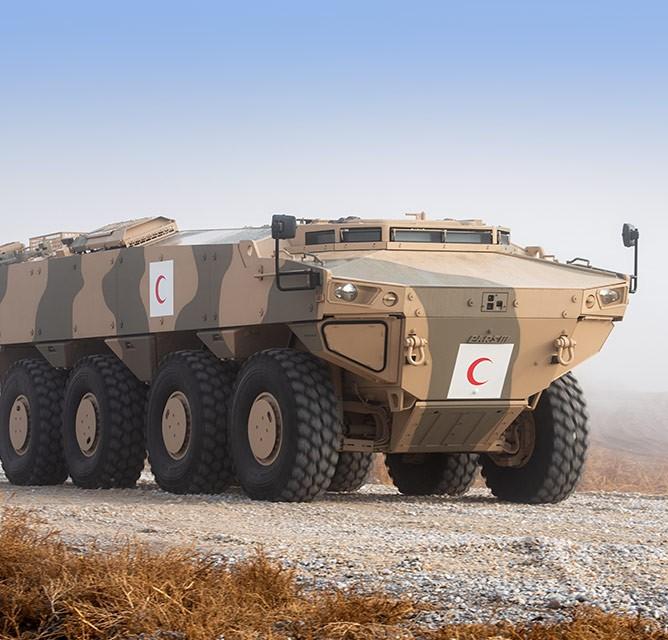

TTZAA is the Tactical Wheeled Armored Ambulance Vehicle variant of the PARS III 8x8 family. It is designed to provide initial medical treatment to patients and casualties and to effectively evacuate them from combat zones under armor protection. It has a capacity of 6 patients: either 8 seated patients, or 2 on stretchers and 4 seated patients, in addition to the driver and medical personnel.

^{PARS III 8x8 Tactical Wheeled Armored Ambulance Vehicle - (}FNSS Defense Systems Official Website⁾

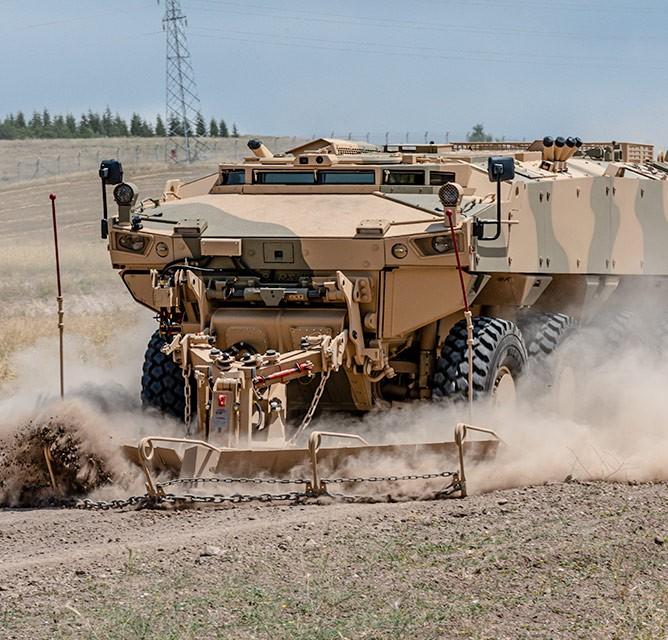

The Engineer Vehicle is a variant of the PARS III 8x8 family developed for mine clearance and obstacle construction or demolition missions. Equipped with rapidly deployable and removable systems and equipment, it can effectively perform diverse tasks to enhance the mobility and operational capability of friendly forces. It has a crew capacity of 6 personnel including driver, commander, and four personnel.

^{PARS III 8x8 Mine Clearance and Obstacle Construction/Demolition Configuration - (}FNSS Defense Systems Official Website⁾

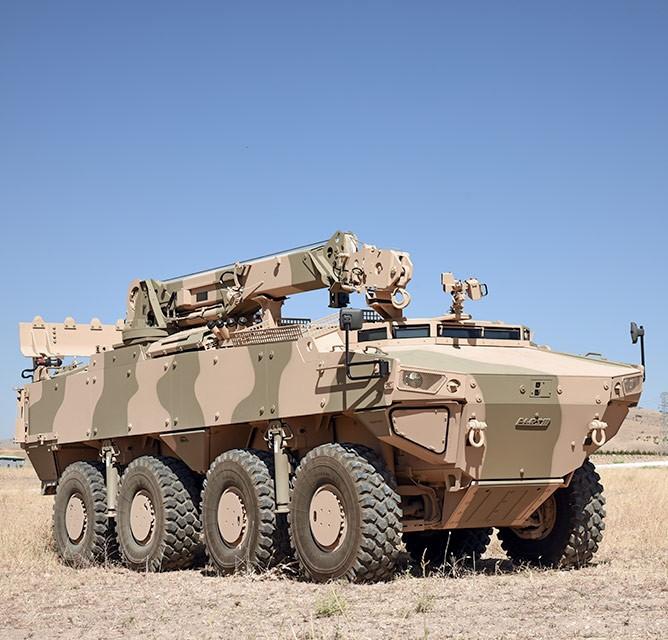

TTZKA is the Tactical Wheeled Armored Recovery Vehicle variant of the PARS III 8x8 family. This vehicle is designed to recover armored or unarmored vehicles using a hydraulic crane mounted on the hull and a winch located inside. It is equipped with a 7.62 mm or 12.7 mm machine gun for defense and has a crew capacity of 6 personnel including driver, commander, two technicians, and two personnel.

^{PARS III 8x8 Tactical Wheeled Armored Recovery Vehicle - (}FNSS Defense Systems Official Website⁾
