Friction Welding is a welding method that joins materials in the solid state without melting. In this process, frictional heat generated by mechanical energy between two workpieces raises the material temperature to its plastic deformation range. The welding operation involves rotating one or both parts to generate heat at the interface, followed by the application of axial pressure to achieve bonding. Since no melting or solidification occurs, friction welding produces metallurgically more stable and homogeneous joint regions.

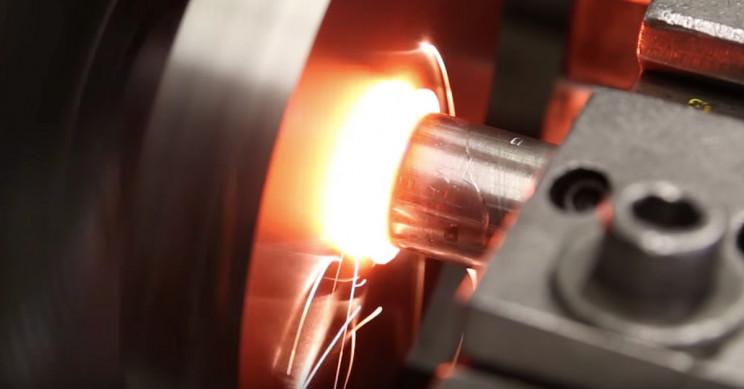

^{Visual of Friction Welding Process (}MİB⁾

The first patent related to friction welding was obtained in 1891 by American machinist I.H. Bevington. In the first half of the 20th century, patent applications in this field were also filed in countries such as Russia, England, and Germany. In the 1950s, Russian scientists demonstrated the industrial feasibility of the method by joining metal rods using friction welding. In the 1960s, commercial machines implementing this technique were developed in the United States.

Friction welding occurs in three main stages:

1. Friction Stage (t₁): One part is held stationary while the other is rotated at a specified speed. Friction between the surfaces generates heat. During this stage, the temperature begins at around 100–120 °C.
2. Braking and Plasticization Stage (t₂): Oxide layers on the surface break down due to heat, exposing clean metal surfaces and initiating plastic deformation. The temperature typically reaches 900–1300 °C (for steels).
3. Forging Stage (t₃): Rotation is stopped, axial pressure is increased, and the plasticized surfaces are compressed to complete the weld. Approximately 87% of the total heat is generated during this phase.

The fundamental mechanisms in this process are friction force, applied pressure, and the shearing of microscopic surface asperities that cause deformation. Therefore, the method achieves both microscopic (atomic-level bonding) and macroscopic (plastic deformation) joining.

• Continuous Drive Friction Welding: The rotating part generates friction at a constant speed. After friction is complete, rotation stops and forging is applied.
• Flywheel (Inertial) Friction Welding: Parts are rotated using kinetic energy previously stored in a flywheel. Pressure is applied once rotation ceases to achieve bonding.
• Combined Friction Welding: A combination of the above two methods, often preferred for welding large components.

• Rotary: The classic method, used for joining circular components such as pipes and rods.
• Linear Vibration: One part moves back and forth to generate frictional heat.
• Angular, Radial, and Orbital Vibration: Methods developed for welding non-circular components.

The main parameters affecting the friction welding process:

• Rotational Speed (n): Influences surface temperature and deformation rate. For steels, the peripheral speed typically ranges between 1.2–1.8 m/s.
• Friction Pressure (P₁): Required to remove surface oxides and ensure uniform heat distribution.
• Forging Pressure (P₂): Selected based on the material’s yield strength. Typically, P₂ = 2–3 × P₁.
• Durations (t₁, t₂, t₃): If heating, braking, and forging times are not properly selected, weld quality may degrade.

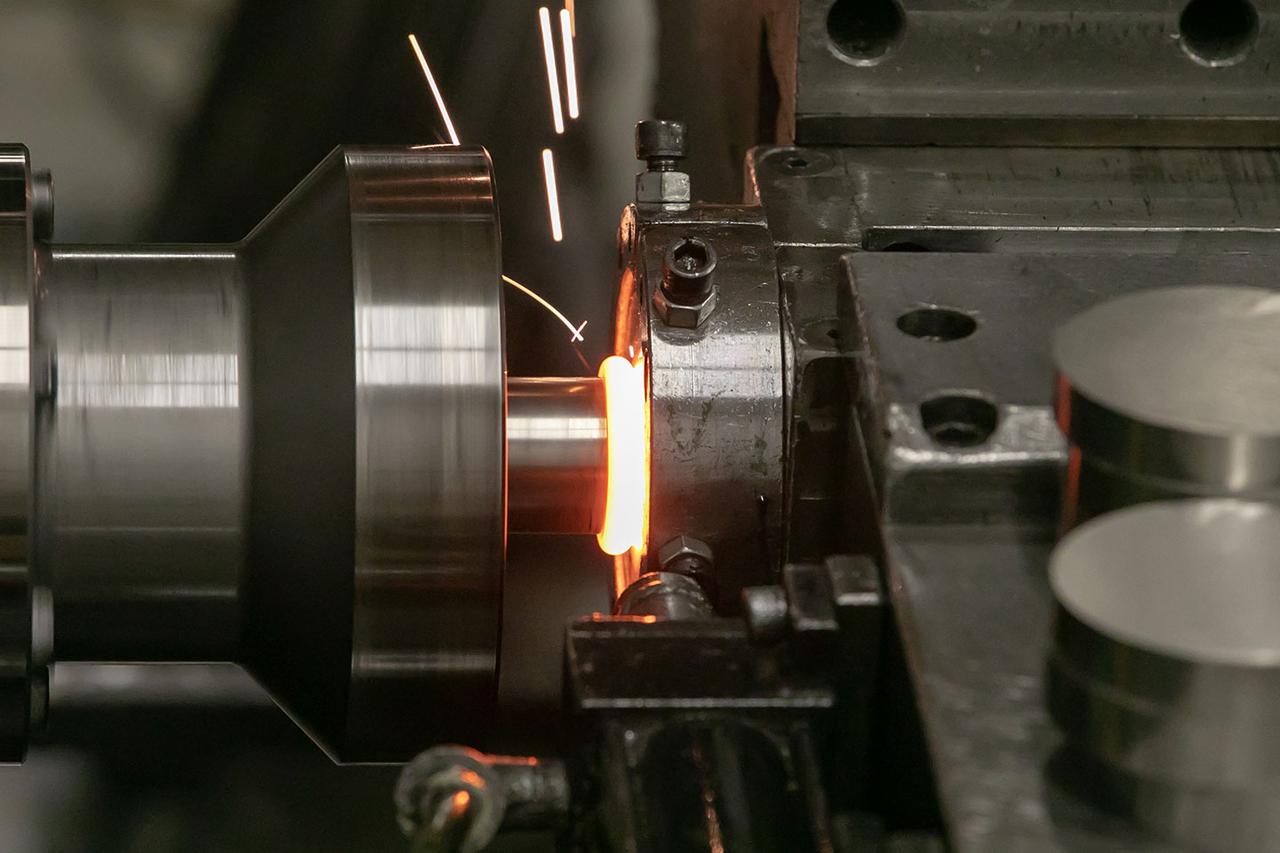

^{Visual of Friction Welding Process (}MIB⁾

• No metallurgical defects occur due to the absence of melting and solidification.
• Dissimilar metals can be joined.
• The weld zone develops a high-strength, fine-grained microstructure.
• No slag, porosity, or gas voids form in the weld zone.
• The heat-affected zone (HAZ) is narrow.
• Highly precise joints can be achieved without requiring subsequent machining.

• Workpieces generally must have a circular cross-section suitable for rotation.
• High motor power and press capacity are required for large cross-sectional areas.
• Axial shortening occurs due to rotation, resulting in material loss.
• Machines and automation systems are expensive.

Friction welding is widely used in the automotive, aerospace, machinery, and defense industries:

• Automotive: Axles, engine valves, brake components, transmission parts.
• Aerospace and Space: Rotors, turbine components, jet engine elements.
• Tool Industry: Drill bits, milling cutters, reamers.
• Machinery Manufacturing: Gears, hydraulic pistons, flanges.

Friction welding can be applied to similar or dissimilar metals. Some successful combinations include:

• Aluminum ↔ Copper / Steel / Brass
• Stainless Steel ↔ Zirconium / Aluminum
• Titanium Alloys ↔ Steel / Aluminum
• Sintered Steels ↔ Carbon Steels

Friction welding is an effective and reliable solid-state welding method that enables the joining of similar or dissimilar materials solely through the conversion of mechanical energy into heat, without the application of high temperature or pressure. It offers advantages such as preservation of microstructure, low energy consumption, a narrow heat-affected zone, and high weld strength, particularly for material combinations where fusion welding methods are inadequate or unsuitable.
