Cessna Citation Bravo

Cessna Citation Bravo is a twin-engine business jet manufactured by Cessna under the Textron Aviation umbrella and classified in aviation terminology as a light jet. The development of the model arose from the need to update the technical and design features of the Citation II, which had already seen over 600 units produced by 1994. Citation Bravo made its first flight in aviation history on 25 April 1995 and received flight certification from the U.S. Federal Aviation Administration (FAA) in the summer of 1996. Commercial availability and the first delivery were completed in February 1997. Over its approximately ten-year production run, which ended in late 2006, a total of 336 units were delivered.^【1】 Following the completion of its production, the model was succeeded by the newer Citation CJ3 concept.

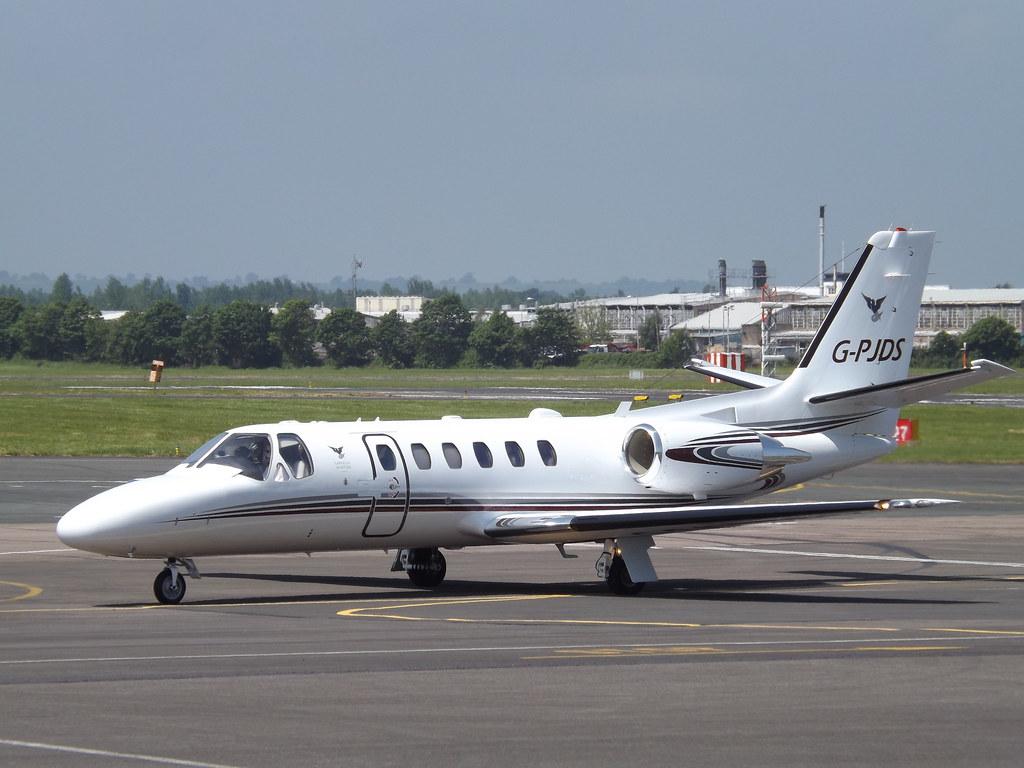

^{Cessna Citation Bravo} (Flickr)

The engine and performance infrastructure of the Cessna Citation Bravo was designed to offer improved fuel efficiency and greater engine power compared to its predecessor, the Citation II. The aircraft is equipped with two Pratt & Whitney Canada PW530A turbofan engines, each capable of producing 2,887 pounds of thrust. The engines’ overhaul interval is rated at 4,000 hours. ^【2】 This engine configuration enables the aircraft to achieve a maximum cruise speed of approximately 745 to 750 kilometers per hour (402–405 knots). The maximum takeoff weight (MTOW) is 6,713 kilograms (14,800 pounds). Range varies depending on payload and weather conditions; with all passenger seats occupied, the range is approximately 2,389 to 2,408 kilometers, and under maximum conditions it can reach up to 3,704 kilometers, enabling uninterrupted flights of three to four hours. ^【3】 The model is capable of reaching a maximum cruise altitude of 13,716 meters (45,000 feet).^【4】 Another key technical feature of its performance profile is its certification for short-runway operations, enabling it to land at challenging airports such as London City and Lugano that require steep approach profiles.

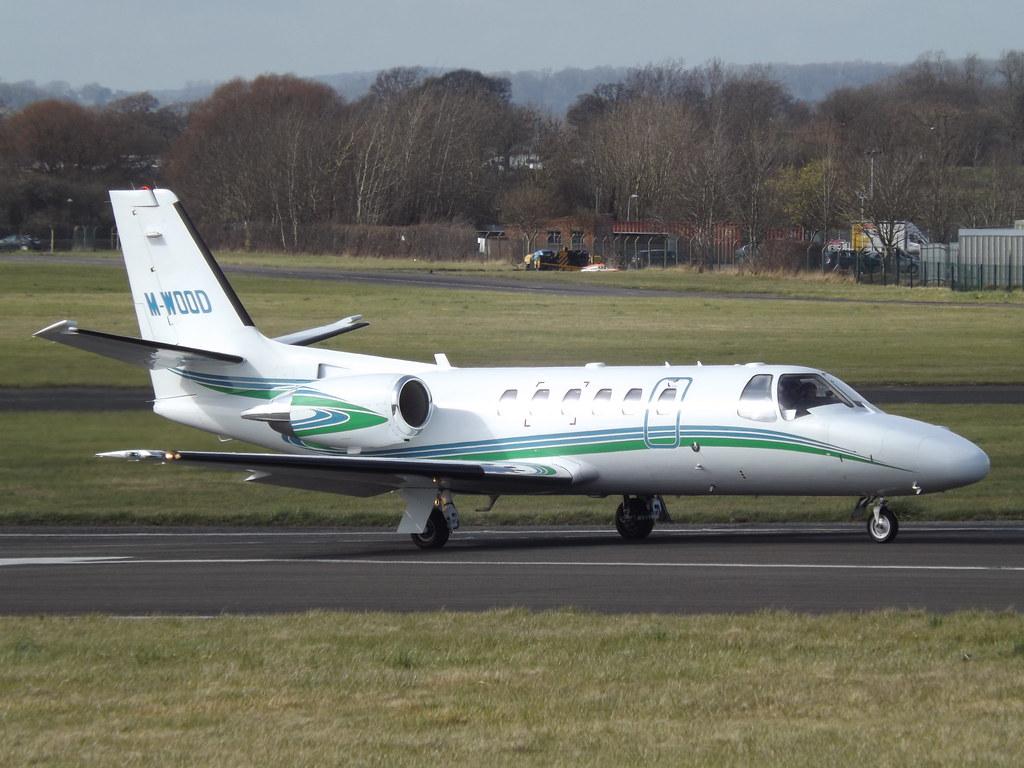

^{Cessna Citation Bravo} (Flickr)

In terms of aviation electronics and navigation systems, the Citation Bravo requires a two-pilot crew for operation. The cockpit is equipped with the Honeywell Primus 1000 integrated avionics system and an Electronic Flight Instrument System (EFIS) as its primary avionics suite. In addition, the Honeywell GNSX flight management system (FMS), along with dual primary flight displays and a single multi-function display, are standard equipment designed to enhance flight efficiency. Structural design improvements were made to increase flight comfort, including the integration of a trailing-link main landing gear system to ensure smoother landing operations.

In terms of physical characteristics and passenger cabin engineering, the Citation Bravo has an overall length of approximately 14.4 to 14.55 meters, a wingspan of 15.72 to 15.8 meters, and a fuselage height of 4.57 to 4.6 meters.^【5】 The cabin architecture was developed based on the interior concept of the Citation Ultra, with the fuselage structure redesigned to minimize interior noise levels. The total cabin volume is 8.30 cubic meters (292 cubic feet). Technical dimensions include a height of 1.43 to 1.47 meters, a width of 1.42 to 1.48 meters, and a length (excluding the cockpit) of approximately 4.75 to 4.78 meters. The model has a typical seating capacity of seven passengers, arranged around a central four-place club seating configuration. With the optional belted seat in the aft lavatory compartment, the passenger capacity can be increased to eight. Finally, the aircraft offers a total baggage capacity of 2.10 cubic meters (approximately 73–74 cubic feet), stored in compartments located in the nose, within the cabin, and in the tailcone.^【6】
