Attitude Angles in Aircraft

One of the fundamental concepts used to understand aircraft motion is attitude angles. These angles describe the rotations of an aircraft around its three principal axes and form the basis of flight dynamics. Aircraft, helicopters, UAVs, and other aerial vehicles can perform maneuvers around these three axes simultaneously or independently. The axes are:

1. Pitch
2. Yaw
3. Roll

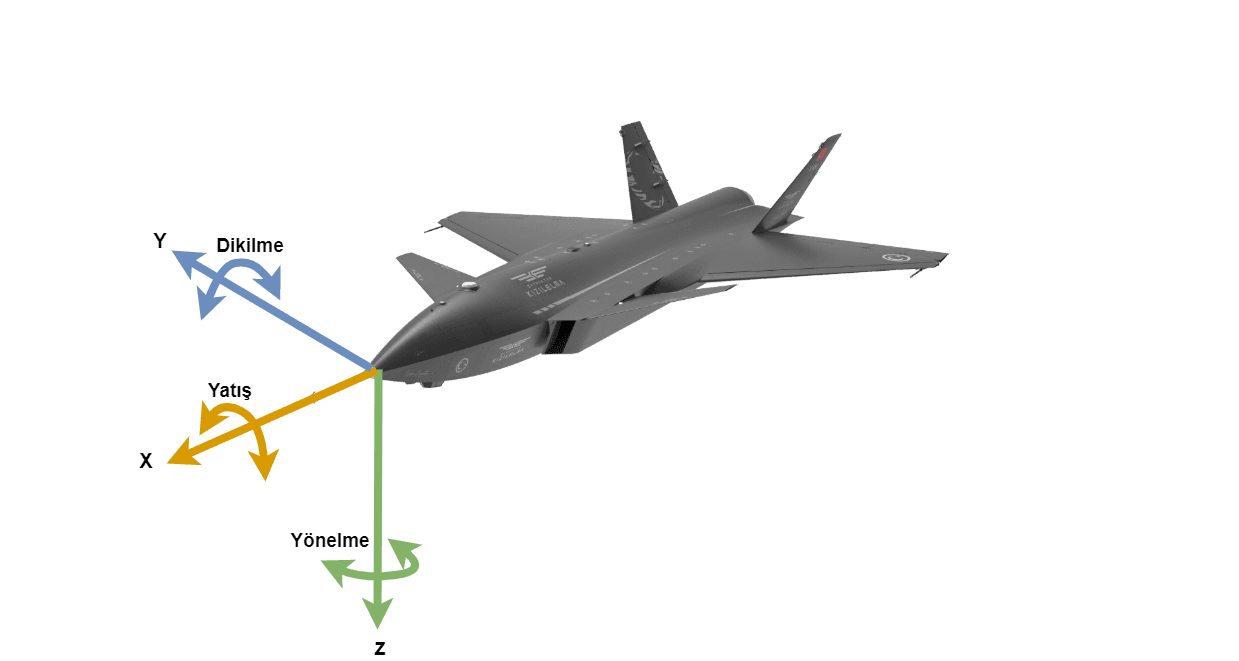

Each is controlled by a different control surface and enables the vehicle to move in different directions. The visual representation of these attitude angles on an aircraft is shown below.

^{Hava Aracı Duruş Açıları Gösterimi (Kaynak:} Baykartech⁾

Pitch refers to the motion of the aircraft around its lateral axis. This axis extends from one side of the aircraft to the other, passing through the wings. Pitch motion causes the nose of the aircraft to move upward or downward.

Yaw is the rotation of the aircraft around its vertical axis. This axis extends from the bottom of the aircraft to its top. Yaw motion causes the nose of the aircraft to turn left or right.

Roll is the rotation of the aircraft around its longitudinal axis. This axis extends from the nose to the tail of the aircraft. Roll motion causes one wing to move upward while the other moves downward.

Pitch, yaw, and roll angles enable an aircraft to move in three-dimensional space. Precise control of these motions is critical for a stable and safe flight. Pilots, flight control systems, and autopilots continuously adjust these angles to maintain the aircraft in its desired orientation.
